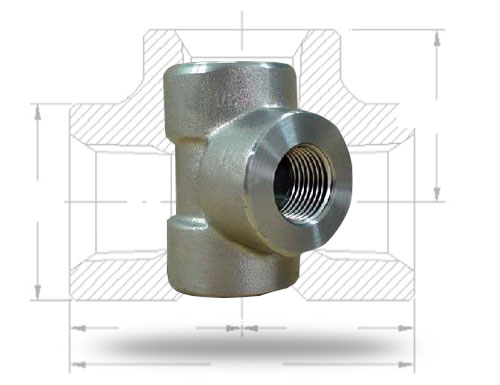

Tees/Threaded
Tees/Threaded
Spec Sheet
| Class | Nom. Size | D in. mm |
H in. mm |
L in. mm |
|
| 2000 | |||||
| 1/8" | |||||
| 1/4" | 1.02 25.9 |
0.98 24.9 |
1.97 50 |
||
| 3/8" | 1.02 25.9 |
0.98 24.9 |
1.97 50 |
||
| 1/2" | 1.3 33 |
1.14 29 |
2.28 57.9 |
||
| 3/4" | 1.5 38.1 |
1.34 34 |
2.68 68.1 |
||
| 1" | 1.81 46 |
1.5 38.1 |
2.99 75.9 |
||
| 1 1/4" | 2.2 55.9 |
1.77 45 |
3.54 89.9 |
||
| 1 1/2" | 2.44 62 |
2.01 51.1 |
4.02 102.1 |
||
| 2" | 2.99 75.9 |
2.36 59.9 |
4.72 119.9 |
||
| 2 1/2" | 3.62 91.9 |
2.99 75.9 |
5.98 151.9 |
||
| 3" | 4.33 110 |
3.35 85.1 |
6.69 169.9 |
||
| 4" | 5.75 146 |
4.173 106 |
8.35 212.1 |
||
| 3000 | |||||
| 1/8" | 1.02 25.9 |
0.98 24.9 |
1.97 50 |
||
| 1/4" | 1.02 25.9 |
0.98 24.9 |
1.97 50 |
||
| 3/8" | 1.3 33 |
1.14 29 |
2.28 57.9 |
||
| 1/2" | 1.5 38.1 |
1.34 34 |
2.68 68.1 |
||
| 3/4" | 1.81 46 |
1.5 38.1 |
2.99 75.9 |
||
| 1" | 2.2 55.9 |
1.77 45 |
3.54 89.9 |
||
| 1 1/4" | 2.44 62 |
2.01 51.1 |
4.02 102.1 |
||
| 1 1/2" | 2.99 75.9 |
2.36 59.9 |
4.72 119.9 |
||
| 2" | 3.31 84.1 |
2.48 63 |
4.96 126 |
||
| 2 1/2" | 4.02 102.1 |
3.23 82 |
6.46 164.1 |
||
| 3" | 4.76 120.9 |
3.74 95 |
7.48 190 |
||
| 4" | 6.02 152.9 |
4.49 114 |
8.98 228.1 |
||
| 6000 | |||||
| 1/8" | |||||
| 1/4" | 1.3 33 |
1.14 29 |
2.28 57.9 |
||
| 3/8" | 1.5 38.1 |
1.34 34 |
2.68 68.1 |
||
| 1/2" | 1.81 46 |
1.5 38.1 |
2.99 75.9 |
||
| 3/4" | 2.2 55.9 |
1.77 45 |
3.54 89.9 |
||
| 1" | 2.44 62 |
2.01 51.1 |
4.02 102.1 |
||
| 1 1/4" | 2.99 75.9 |
2.36 59.9 |
4.72 119.9 |
||
| 1 1/2" | 3.31 84.1 |
2.48 63 |
5.98 151.9 |
||
| 2" | 4.02 102.1 |
3.23 82 |
6.46 164.1 |
||
| 2 1/2" | 4.76 120.9 |
3.74 95 |
7.48 190 |
||
| 3" | 5.75 146 |
4.17 105.9 |
8.35 212.1 |
||
| 4" | 6.02 152.9 |
4.49 114 |
8.98 228.1 |
||
