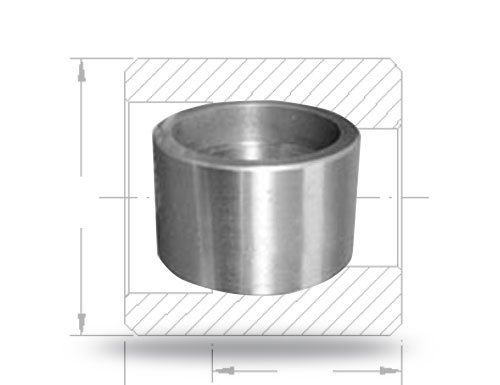

Half Coupling/SW

Half Coupling/SW

Spec Sheet

Class Nom. Size D
in.
mm
 F
in.
mm
 L
in.
mm
 S
in.
mm
 H
in.
mm
3000
1/4" 0.87
22.1		 0.63
16		 1.02
25.9		 0.28
7.1		 0.69
17.5
3/8" 1.02
25.9		 0.69
17.5		 1.08
27.4		 0.28
7.1		 0.69
17.5
1/2" 1.26
32		 0.83
21.1		 1.22
31		 0.31
7.9		 0.79
20.1
3/4" 1.5
38.1		 0.94
23.9		 1.46
37.1		 0.39
9.9		 0.98
24.9
1" 1.81
46		 1.1
27.9		 1.61
40.9		 0.47
11.9		 1.06
26.9
1 1/4" 2.16
54.9		 1.14
29		 1.65
41.9		 0.51
13		 1.1
27.9
1 1/2" 2.44
62		 1.18
30		 1.69
42.9		 0.59
15		 1.18
30
2" 2.99
75.9		 1.61
40.9		 2.24
56.9		 0.71
18		 1.42
36.1
2 1/2" 3.62
91.9		 1.69
42.9		 2.32
58.9		 0.83
21.1		 1.46
37.1
3" 4.33
110		 1.75
44.4		 2.38
60.5		 0.94
23.9		 1.57
39.9
4" 5.43
137.9		 1.89
48		 2.64
67.1
6000
1/4"
3/8"
1/2" 1.38
35.1		 0.83
21.1		 1.22
31		 0.47
11.9		 0.92
23.4
3/4" 1.65
41.9		 0.94
23.9		 1.46
37.1		 0.51
13		 1.02
25.9
1" 2.01
51.1		 1.1
27.9		 1.61
40.9		 0.59
15		 1.1
27.9
1 1/4" 2.36
59.9		 1.14
29		 1.65
41.9		 0.71
18		 1.3
33
1 1/2" 2.68
68.1		 1.18
30		 1.69
42.9		 0.79
20.1		 1.38
35.1
2" 3.31
84.1		 1.61
40.9		 2.24
56.9		 0.94
23.9		 1.57
39.9
2 1/2" 3.74
95		 1.69
42.9		 2.32
58.9		 1.14
29		 1.77
45
3" 4.53
115.1		 1.75
44.4		 2.38
60.5		 1.34
34		 1.97
50
4"
