Caps/Threaded

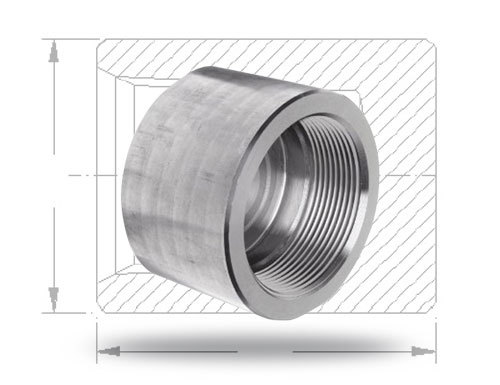

Caps/Threaded

Spec Sheet

Class Nom. Size D
in.
mm
 L
in.
mm
 H
in.
mm
 P
in.
mm
3000
1/8" 0.75
19		 1.26
32		 0.63
16		 0.91
23.1
1/4" 0.75
19		 1.38
35.1		 0.71
18		 1.06
26.9
3/8" 0.87
22.1		 1.5
38.1		 0.75
19		 1.14
29
1/2" 1.14
29		 1.89
48		 0.94
23.9		 1.42
36.1
3/4" 1.38
35.1		 2.01
51.1		 1.02
25.9		 1.5
38.1
1" 1.77
45		 2.4
61		 1.22
31		 1.61
40.9
1 1/4" 2.24
56.9		 2.64
67.1		 1.34
34		 1.77
45
1 1/2" 2.52
64		 3.15
80		 1.57
39.9		 1.77
45
2" 2.99
75.9		 3.39
86.1		 1.69
42.9		 1.89
48
2 1/2" 3.62
91.9		 3.62
91.9		 1.81
46		 2.4
61
3" 4.25
107.9		 4.25
107.9		 2.13
54.1		 2.56
65
4" 5.51
140		 4.76
120.9		 2.4
61		 2.72
69.1
6000
1/8"
1/4" 1.02
25.9		 1.38
35.1		 0.71
18		 1.1
27.9
3/8" 1.26
32		 1.5
38.1		 0.75
19		 1.1
27.9
1/2" 1.5
38.1		 1.89
48		 0.94
23.9		 1.34
34
3/4" 1.77
45		 2.01
51.1		 1.02
25.9		 1.5
38.1
1" 2.24
56.9		 2.36
59.9		 1.22
31		 1.69
42.9
1 1/4" 2.52
64		 2.64
67.1		 1.34
34		 1.81
46
1 1/2" 2.99
75.9		 3.15
80		 1.57
39.9		 1.89
48
2" 3.62
91.9		 3.39
86.1		 1.69
42.9		 2.01
51.1
2 1/2" 4.25
107.9		 3.62
91.9		 1.81
46
3" 5
127		 4.25
107.9		 2.13
54.1
4" 6.26
159		 4.76
120.9		 2.4
61
