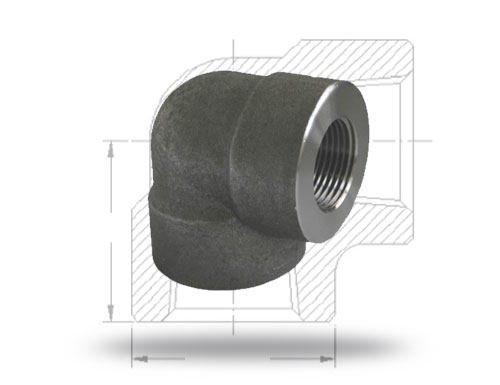

Elbows/Threaded

Elbows/Threaded

Spec Sheet

Class Nom. Size D
in.
mm
 H
in.
mm
 K
in.
mm
 L
in.
mm
2000
1/8"
1/4" 1.02
25.9		 0.98
24.9		 0.79
20.1
3/8" 1.02
25.9		 0.98
24.9		 0.79
20.1
1/2" 1.29
32.8		 1.14
29		 0.91
23.1
3/4" 1.5
38.1		 1.34
34		 1.02
25.9
1" 1.81
46		 1.5
38.1		 1.14
29
1 1/4" 2.2
55.9		 1.77
45		 1.3
33
1 1/2" 2.44
62		 2.01
51.1		 1.46
37.1
2" 2.99
75.9		 2.36
59.9		 1.69
42.9
2 1/2" 3.62
91.9		 2.99
75.9		 2.05
52.1
3" 4.33
110		 3.35
85.1		 2.44
62
4" 5.75
146		 4.17
105.9		 2.99
75.9
3000
1/8" 1.02
25.9		 0.98
24.9		 1.26
32		 0.79
20.1
1/4" 1.02
25.9		 0.98
24.9		 1.26
32		 0.79
20.1
3/8" 1.3
33		 1.14
29		 1.5
38.1		 0.91
23.1
1/2" 1.5
38.1		 1.34
34		 1.65
41.9		 1.02
25.9
3/4" 1.81
46		 1.5
38.1		 1.89
48		 1.14
29
1" 2.2
55.9		 1.77
45		 2.24
56.9		 1.3
33
1 1/4" 2.44
62		 2.01
51.1		 2.64
67.1		 1.46
37.1
1 1/2" 2.99
75.9		 2.36
59.9		 2.83
71.9		 1.69
42.9
2" 3.31
84.1		 2.48
63		 3.31
84.1		 1.85
47
2 1/2" 4.02
102.1		 3.23
82		 2.2
55.9
3" 4.76
120.9		 3.74
95		 2.6
66
4" 6.02
152.9		 4.49
114		 3.15
80
6000
1/8"
1/4" 1.3
33		 1.14
29		 0.91
23.1
3/8" 1.5
38.1		 1.34
34		 1.02
25.9
1/2" 1.81
46		 1.5
38.1		 1.14
29
3/4" 2.2
55.9		 1.77
45		 1.3
33
1" 2.44
62		 2.01
51.1		 1.46
37.1
1 1/4" 2.99
75.9		 2.36
59.9		 1.69
42.9
1 1/2" 3.31
84.1		 2.48
63		 1.85
47
2" 4.02
102.1		 3.23
82		 2.2
55.9
2 1/2" 4.76
120.9		 3.74
95		 2.6
66
3" 5.75
146		 4.17
105.9		 2.99
75.9
4" 6.02
152.9		 4.49
114		 3.15
80
